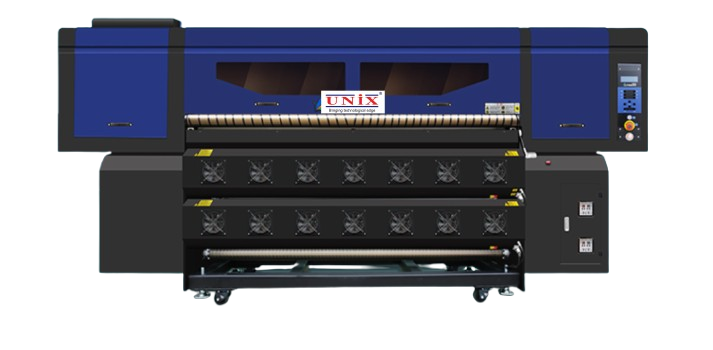

Digital Sublimation Printer
15 Heads – 61915E
- SPEED:
- 1 Pass 550-610 sqm/h
- 2 Pass 275-305 sqm/h
- PRINTHEAD : Epson I3200-A1 15 Heads
Product Features:
Advanced liftable and sealed capping station, ink absorption, ink scraping is accurate.
Large-capacity ink cartridges, with a secondary ink supply system to avoid frequent addition of ink.
Anti-static design, uniform strength, to ensure smooth paper feeding, simple and easy to adjust.
High quality motor with high resolution, low length error, more stable.
Imported German IGUS ink chain, high quality, to ensure the smooth completion of the printing.
Million meter take-up system can be upgraded to ensure accurate and stable delivery of materials.
Technical Parameters
| Model | 61915E |
| Printhead | EPSON 13200-A1 |
| Printhead Quantity | 15 |
| Print Speed *Tested on Iinear print without feather function | 360*1200dpi: ● 1 Pass 550-610 sqm/h 360*2400dpi: ● 2 Pass 275-305 sqm/h |
| Ink Type | Sublimation Ink, Water-based Ink (Dye or Pigment) |
| Ink Color | CMYK |
| Print Width | 1900mm |
| Print Media | Transfer Paper |
| Material Transmit | Inflatable roller auto feeding and take-up media system |
| Dryer | Extra intelligent fan dryer |
| Moisture Mode | Full seal auto moisture and cleaning |
| RIP Software | Maintop 6.0 (standard equipped), Photoprint 19, Onyx 19, NeoStampa |
| Image Format | JPG, TIFF, BMP, PDF, etc. |
| Computer System | Win7 64 bits, Win10 64 bits |
| Transmit Port | Giga-bit ethernet port |
| Computer Configuration | Hard disk: 500G or more, GPU: ATI Mobility Memory 4G, RAM: 8G, CPU: i7 Processor or above |
| Working Environment | Temp: 18-30 degree C Humidity: 35-65% |
| Power | 210-230V, 50/60Hz, 16A Machine: 2200W Dryer: Max. 10800W |
| Machine Dimension | 3710*1500*1940mm |
| Packing Size | 3900*1340*1980mm |
| Print Height | 2-5mm |
| Media Transfer | Auto media feeding and taking-up system, roll to roll |
| Standard Configuration | Ink level alarm system |
| Nozzle Quantity | 3200 |
| Ink Supply Method | Siphon positive pressure ink supply |
