UN GEN5

UN GEN5 High Speed Digital Sublimation Textile Printer

  • Optional for various materials & inks, fabrics, paper…which minimized investment for customer choice
  • The stability design ensure continuous printing in 24/30(24hrs/30days)
  • The printer can greatly minimized the cost for end user by saving inks, reducing staff in particularly a person can manage multiple machines, save labour cost as well
  • Available for loading large size printing materials, maximum can be upto 800mm in diameter which reduce the frequency of material loading
  • The printer itself is equipped with heating system, convenient to print different materials in a timely manner

Technical Features

Printhead Ricoh GEN5 (6/8/9/12/16 Pcs)
Printing Precision 300 x 300 / 600 / 900 / 1200 / 1500 / 1800
600 x / 300 / 600 / 900 / 1200 / 1500 / 1800
Speed 8 Heads: 1 Pass 220 sqm/h; 2 Pass 110 Sqm/h; 3 Pass 75 Sqm/h
16 Heads: 1 Pass 400 sqm/h; 2 Pass 210 sqm/h; 3 Pass 150 sqm/h
Print Height 2-30 mm
Transmission Mode German made automatic feeding & take-up system;
Reducer Japan Sumitomo Reducer
Motor / Guide Japan Panasonic Servo Motor / Japan THK Mute Rail
Maximum Printing Width 1800mm
Ink Cyan, Magenta, Yellow, Black, Blue, Orange, Bright Red, Grey
Ink Supply System Peristaltic Pump for Ink
Negative Pressure Independent single color negative pressure control,
Belt Cleaning System Automatic cleaning brush, Rubber scraper & automatic drying system
Printhead Cleaning System Automatic PH cleaning, automatic scraping and moisturising system
Fabric Type All kinds of Rayon, Nylon, Synthetic Fiber etc
Diameter of Print & Weight 450mm / 160 KG
Control System European System
Data Transmission TCP/IP Network Interface
Software Ergosoft/Wasatch
Drying System Hot Air circulation drying
Power / Voltage AC 380V / 6KW
Printer Dimension / Weight W3.8m x L1.8m x H1.8m / 1900KG
Working Pressure 0.6mpa
Working Environment 0 Room temperature 20-25 C. Humidity 35-65%
Download pdf

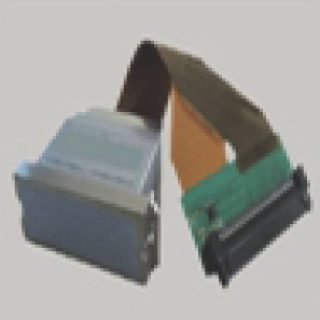

Ricoh Gen 5 Print Head with 1280 Nozzles, Integrated Heater & The Mistor. 7-35PL with Grey – Scale

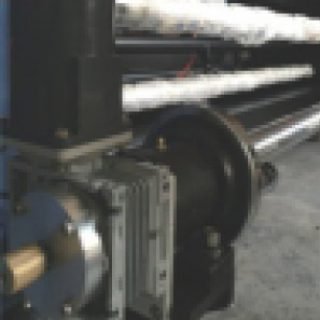

Textile Feeding System Flexible for direct printing on most of fabrics

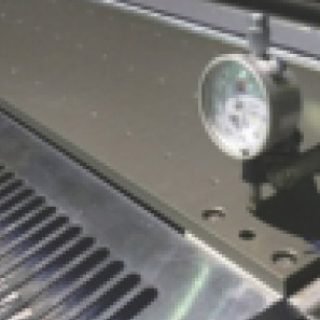

Modern designed shape and precision assures highly quality printing

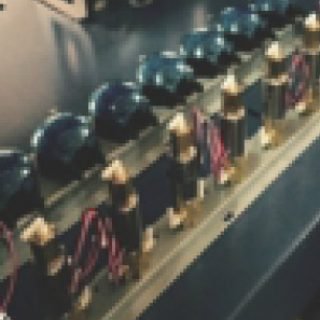

Individual Negative Control System Provides single color control in varies colors

Ink Feeding System Easy to change, 3.6l ink tank Allows stables and continues ink supplying
