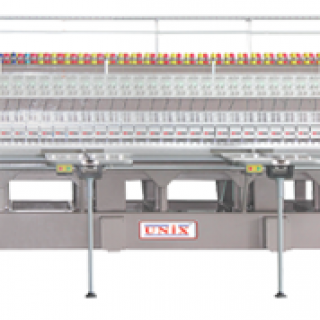

UN Series Multi Head Mini Schiffli

  • 176 Needle, Max. Speed 850 SPM, Emb. Area in 55 x 500 x 1500
  • Get schiffli efficiency at embroidery machine cost
  • 3D function is available with this machine
  • Boring, sequin and cording device can be installed
  • Heavy Thread Stand Smooth Running with Easy Operation
  • Modular Tension base More easy for color change
  • Heavy Duty Main Motor for smooth and steady running
  • 5”, 528 with high efficient software
  • Auto Oiling System Controllable Spray Oiling
  • Saving body structure
  • 1.6x Rotary Hook: Less Downtime, More Efficient
  • X-Y by Servo Motor:Fast Precise Motion

Technical Features

Model Needles Heads Head Space Emb. Area Frame Length Length / Width
UN – 2132 2 132 55 500×1500 7705mm 9210x3680mm
UN – 2172 2 172 55 500×1500 9905mm 11410x3680mm
UN – 2176 2 176 55 500×1500 10125mm 11630x3680mm
UN – 2180 2 180 55 500×1500 10345mm 11850x3680mm
