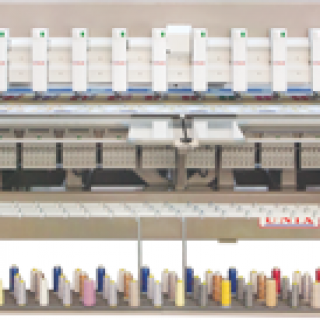

UN Series High Speed Pure Chenille

  • 50 Head, 4 Colour, Max. Speed 1100 SPM, Emb. Area in 200 x 600 x 1500
  • High speed head More Speedy, Stable & less noise
  • Chain Sequin Function
  • 10” C16 for high quality stitches computer system
  • Looper Turning by Twin Servo Motor: Assured Power for Super Multi Heads
  • Automatic Suction & Blowing System
  • Innovative Coiling Device: Taping & Coiling on Chenille Machine
  • Twin AC Motor Colour Change: Smooth & Stable, Even 50 Heads

Technical Features

Model Needles Heads Head Space Emb. Area Frame Length Length/Width
UN – 624 6 24 250 550×1300 6300mm 7765x3115mm
UN – 627 6 27 250 550×1300 7050mm 8515x3115mm
UN – 630 6 30 250 550×1300 7800mm 9265x3115mm
UN – 636 6 36 250 550×1300 9300mm 10865x3168mm
UN – 450 4 50 200 600×1300 10400mm 12015x3168mm
2

High speed head
Stable & less noise
More Speedy

3

High Speed Chenille
Head Cover

4

Looper Turning by Twin Servo Motor:
Assured Power for Super Multi Heads

5

10” C16 for high
quality stitches

computer system

6

Automatic Suction
&
Blowing System

7

Innovative Coiling Device:Taping &
Coiling on Chenille
Machine

1

Double H Shaft
