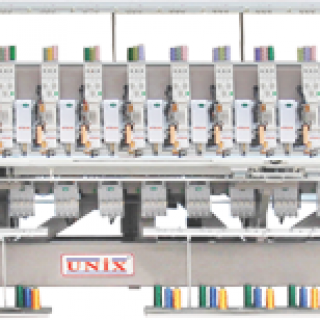

UN High Speed Mix chenille

  • (35+35) Head, 4 Colour in chain, 3 Colour in flat, Max. Speed 1100 SPM, Emb. Area in 250 x 550 x 1300
  • Automatic Needle, Nipple and pressure foot lifting mechanism
  • Flexible Options available Sequin, Cording, Boring
  • 10” C16 computer system for high quilaty stitches
  • AC Motor Color Change: More Smooth & Stable
  • Looper Turning by Twin Servo Motor: Assured Power for Super Multi Heads
  • Automatic suction & blowing system
  • Needle Turning by Servo Motor: More Speedy, Precise and Quiet
  • X-Y by Servo Motor: Fast Precise Motion

Features

Model Needles Heads Head Space Emb. Area Frame Length Length / Width
UN – 30327 3+3 27+27 250 550×1300 7165mm 8745x3210mm
UN – 30329 3+3 29+29 250 550×1300 7665mm 9245x3210mm
UN – 30330 3+3 30+30 250 550×1300 7915mm 9495x3210mm
UN – 30334 3+3 34+34 250 550×1300 8915mm 10595x3263mm
UN – 30336 3+3 36+36 250 550×1300 9415mm 11095x3263mm
1

Automatic Needle,
Nipple and
pressure foot lifting
mechanism

2

Looper Turning by Twin Servo Motor:
Assured Power for Super Multi Heads

3

10” C16 computer
system for
high
quilaty stitches

4

Automatic suction
& blowing system

5

X-Y by Servo Motor: Fast Precise Motion

6

Needle Turning by
Servo Motor:
More Speedy, Precise and
Quiet
